Industrial - special tubes

Castello Italia S.p.A. offers a range of special tubes for applications requesting high temperature and chemical resistance, excellent dielectric and mechanical properties as well as very low friction coefficient. They comply with extremely restricted and severe performances.

The tube C.ESD made of PA12 deserves special attention as it is particularly recommended for flammable liquid tube transportation thanks to its electro-static dissipative properties.

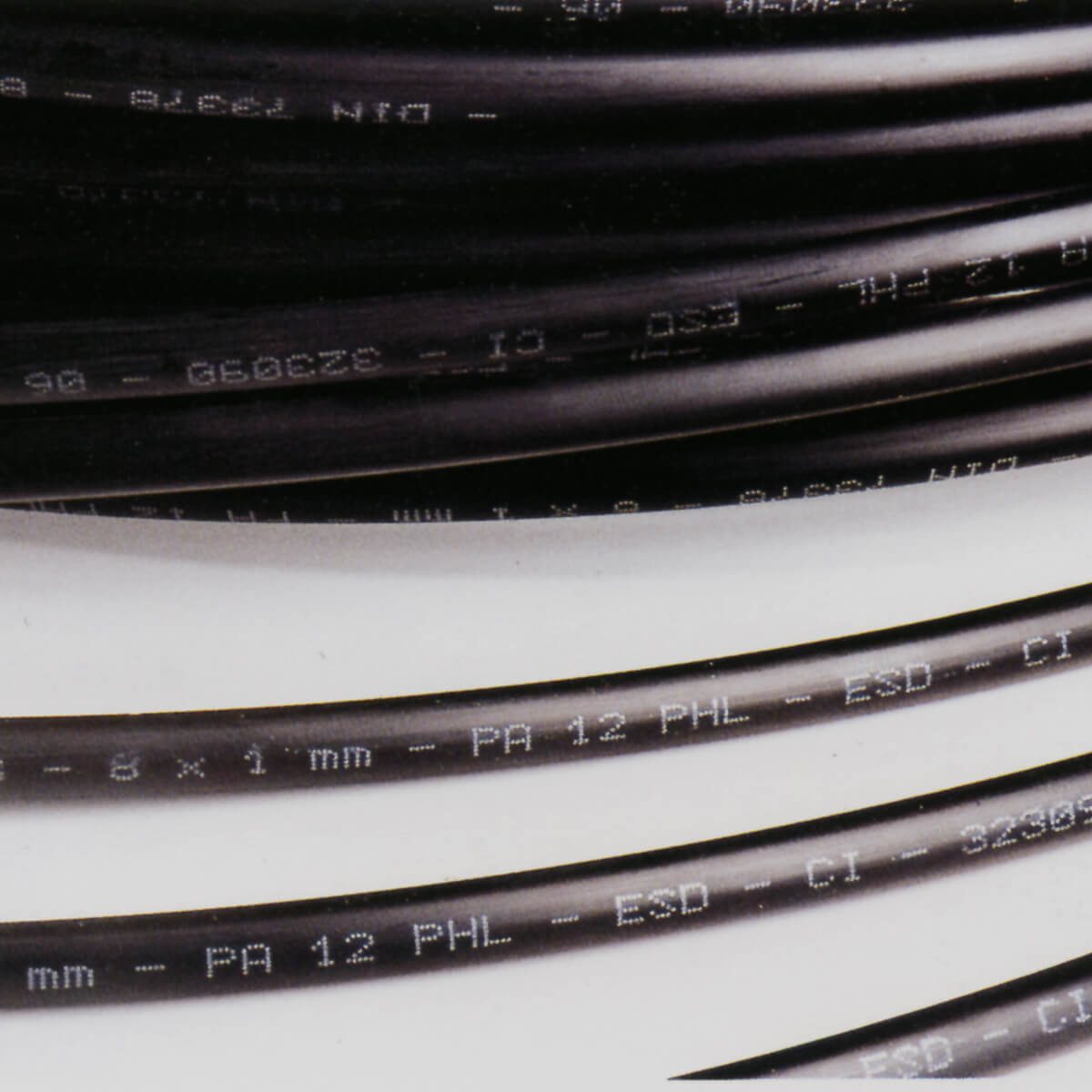

C.ESD

C.ESD tubes in Polyamide 12 have been developed using the latest nanotechnology in polymer engineering. This tube, antistatic and flexible, can be used in pneumatic and fluid transfer applications (ATEX):
• Flammable fluids transfer
• Pneumatic systems and tubes in explosive environments.These tubes C.ESD could be classified ATEX II 2 G/D.

DOWNLOAD CATALOGUE

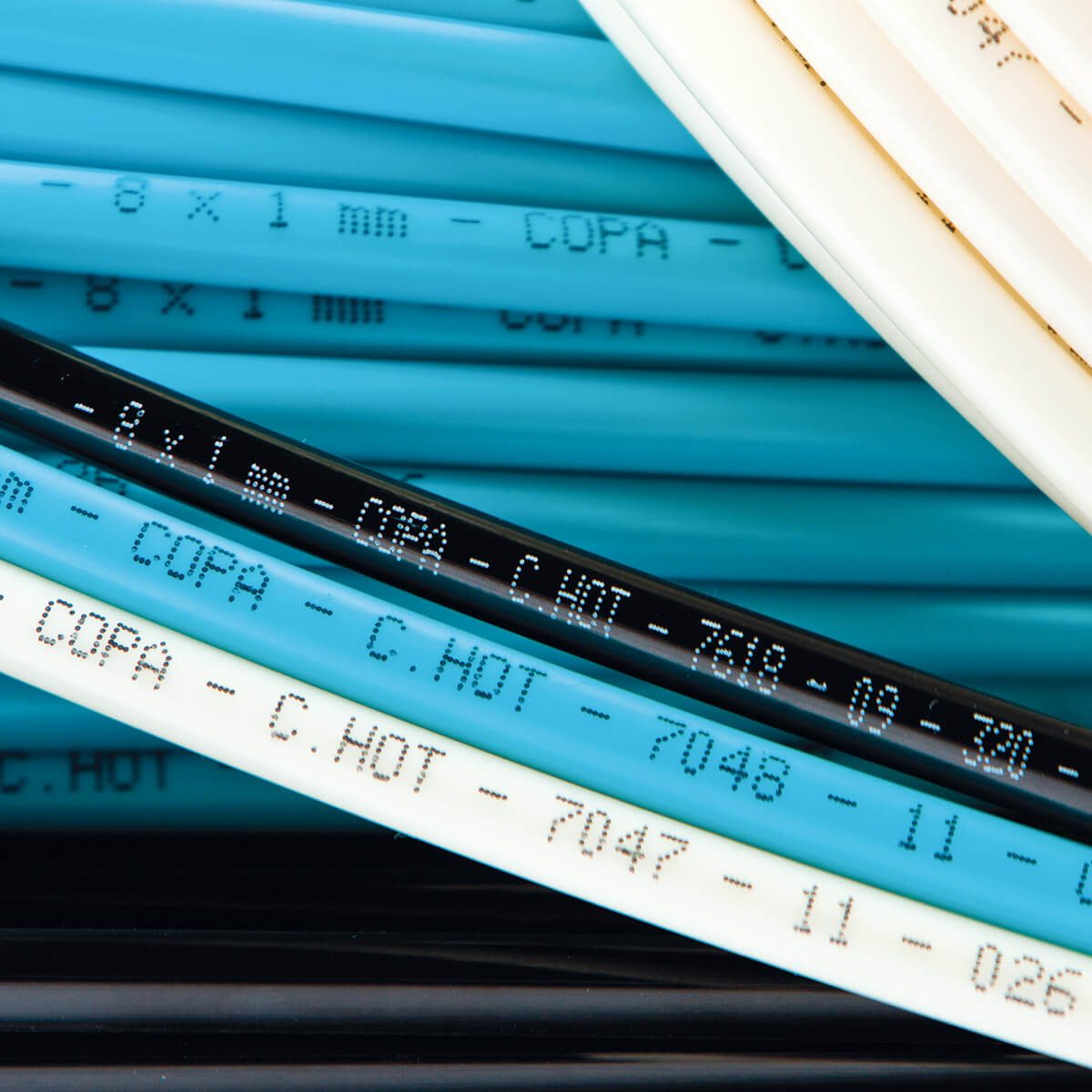

C.HOT

This innovative tube has been developed for very restrictive automotive and pneumatic applications. Its main properties are:
• long term temperature resistance at 150°C;
• suitable for push-in fittings (better than PTFE tubes);
• very good bending radius suitable for thermoforming parts and spirals.

DOWNLOAD CATALOGUE

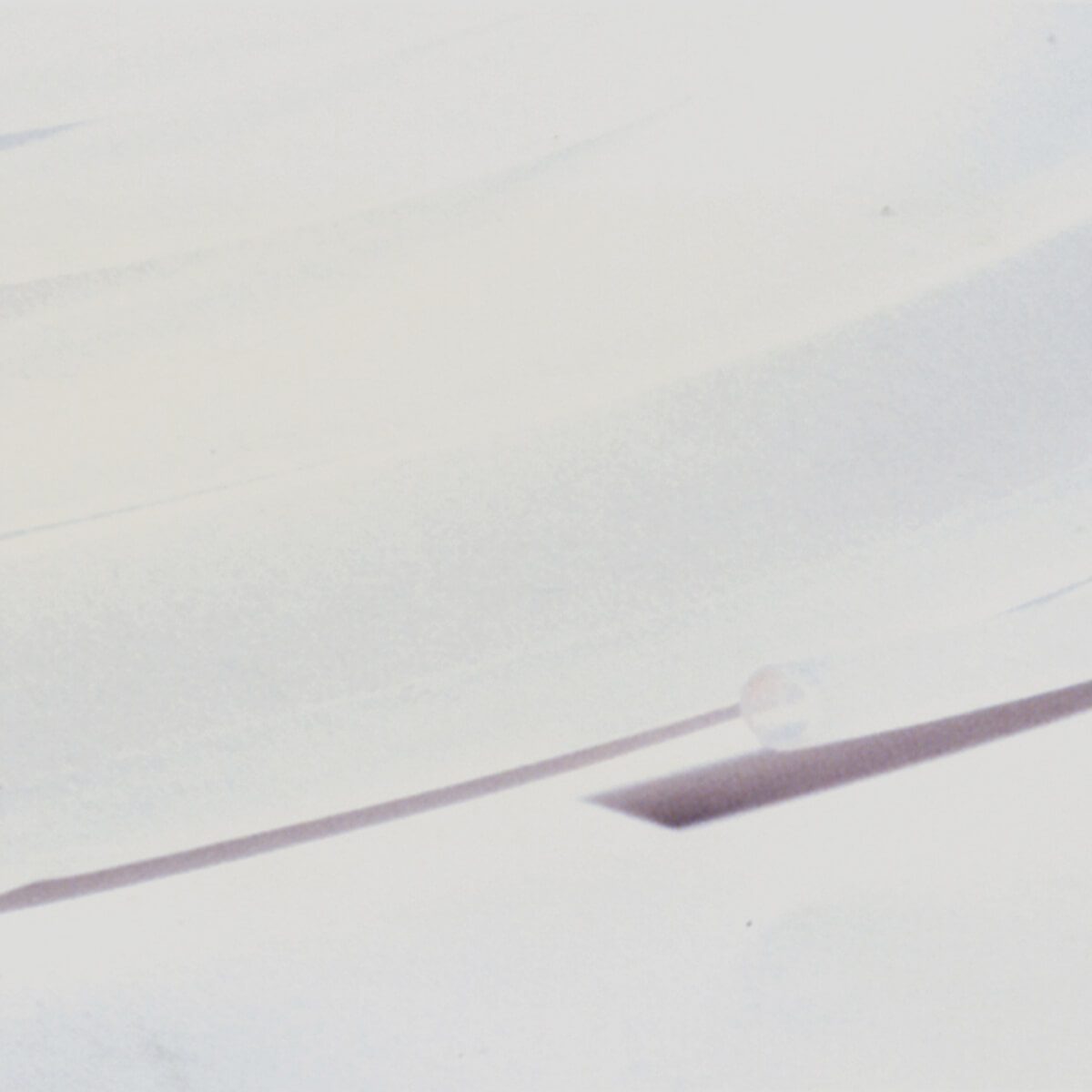

C.CHEM

Thanks to its combination of Carbon and Fluor, PTFE tubes are suitable for applications where the following properties are required:
• high temperature resistance: +260°C;
• perfect chemical resistance to all corrosive substances;
• low friction coefficient;
• remarkable dielectric properties;
• self-extinguishing (UL 94 V0);
• good mechanical properties;
• slow ageing, unalterable;
• excellent hydrolysis and UV resistance.

DOWNLOAD CATALOGUE

C.FLAM

C.FLAM PA11 fireproof tubes allow to retard flame propagation in case of fire. They are classified UL94 V2, they are ROHS Free, halogen free and they are available only in sky-blue color.

DOWNLOAD CATALOGUE

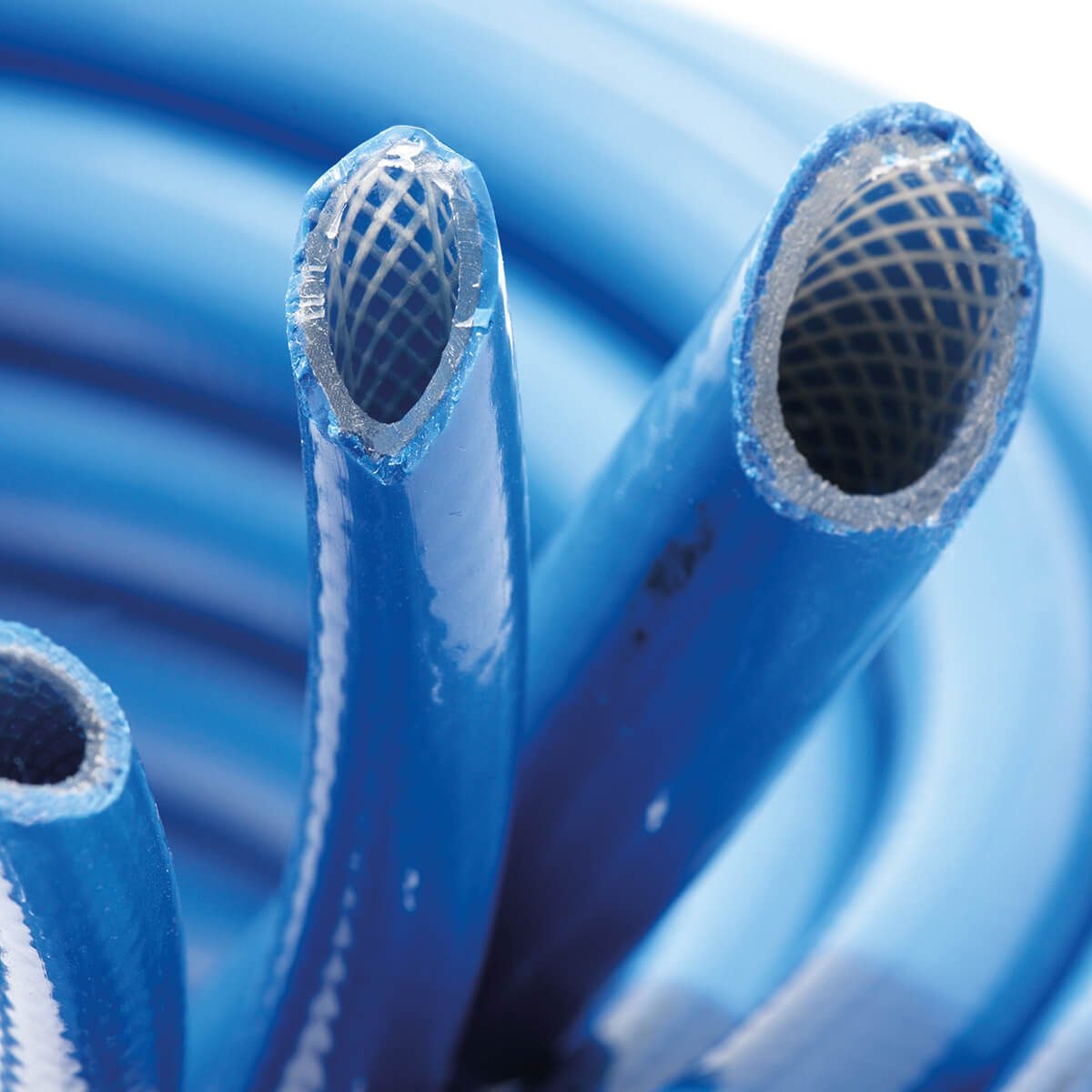

C.TWENTY

C.TWENTY: : very flexible braided hose in polyurethane. It shows very good abrasion resistance and a flexibility 5 times higher than PVC. Thanks to its polyester braiding the working pressure reaches 20 bar.

DOWNLOAD CATALOGUE
